Tibet's mineral and petroleum deposits: free databases

We are pleased to release an updated map and a set of databases on Tibet’s mineral and petroleum deposits. This set of data is the most complete and accurate information that is publicly available on this topic.

In 2011, the Tibetan Plateau blog released a preliminary map and databases of Tibet’s minerals, salt lakes and petroleum deposits. Though incomplete, we felt we should release it then because it was more accurate and complete than other maps and lists available at that time.

Today, we are releasing the updated map above (which can also be downloaded here) and four accompanying databases. The four databases are Mineral, Salt Lake, Petroleum, and Unidentified Prospects and Mines. In the current version, we have included coal mines, oil-sand deposits, and several other mineral deposit sites that failed to make onto the preliminary map and databases.

The Minerals database contains a list of 192 mineral deposit/mining sites, out of which 147 have been mapped. The Salt Lakes database contains a list of 24 sites listed with all but two mapped. The Petroleum Deposits database contains 38 sites, out of which 35 have been mapped. Readers are encouraged to check these sites on Google Earth with the help of latitude-longitude coordinates provided in the databases.

Most of the prospects and mines listed in the database are verified with Google Earth, with an additional 58 identified visually in Google Earth but are not currently confidently linked to a documented deposit. Readers’ assistance in identifying these sites would be highly appreciated.

Information provided in the databases includes latitude-longitude coordinates, status of development, products, size of project/mine, validity, county, prefecture, and references for more information. All development projects are listed with their Pinyin names. The main cities and geographical features on the map are shown with Tibetan names.

The finalized databases have two format changes from the preliminary release. First, all references are embedded within the deposit lists. Second, ownership information has been removed to a separate database which may be cross-referenced by deposit name.

In addition to the Areas of Interest mentioned in the preliminary introduction to the dataset, the following should be noted. In northeast Qinghai (A-mdo), a number of coal mines are operating that are visible in Google Earth, are currently awaiting formal identification. Coal may also be being mined in the Tsaidam Basin. Also of significance are the oil-sands deposits currently under exploration in the Tsaidam Basin, Jhangthang and the Lunpola Basin (thang nyog thang) in TAR.

Exploration in the southwest edge of the Tsaidam Basin has resulted in the discovery of a number of significant deposits of base metals (Galinge, etc.). On the basin’s southeast edge two large gold deposits, Gouli and Guloulongwa (near Panchen Shingde), are being explored. In both cases, the deposits were located by the use of modern regional geological survey techniques.

The Songpan-Ganze Mobile Belt is an area of particular concern, with very little detailed data beyond the Dachang gold deposit documentation. In Qinghai, the belt passes through both the Hoh Xil Nature Reserve and the Sanjiangyuan National Nature Reserve (SNNR). Hoh Xil is protected against resource extraction, yet is currently host to heavy equipment brought in by illegal miners, and exploration crews from the government geological survey.

The SNNR has already had its boundaries adjusted to accommodate mineral exploration and mining near Dachang. These territorial boundaries directly affect the controversial campaign of resettling Tibetan nomads. Tibetans who protest against or post information about these projects are often put behind bars, as demonstrated by Gangnyi, a Tibetan environmental photographer.

Mining is posed to become ever more important in Tibet, as written about by China Daily here and by Gabriel Lafitte in the China Dialogue site. The Tibetan Plateau blog has also written on this subject.

To learn more or to participate in political action, please visit Stop Mining Tibet and International Tibet Network websites.

Read more on this article...

Introduction to the Petroleum and Mineral Deposits of the Tibetan Plateau Preliminary Database and Map

Tibetan Plateau blog published a preliminary map and database of petroleum and mineral deposits of the Tibetan Plateau. The map and the database seek to provide an overview of publically available information regarding petroleum and mineral deposits on the Tibetan Plateau. We hope to be able to produce future versions of increasing completeness and accuracy. As improvements are completed they will be made available on the Internet for the public to view and download without charge. Our approach has sought to avoid excessive technicalities while giving sufficient information that the lay public can better assess the actually and potential economic, human rights, and environmental effects of resource exploration, extraction and processing on the Tibetan Plateau. For those that want more detailed information on the deposits or the geology of the region a list of academic references is provided. While we have attempted to include names of the companies working on the various deposits, detailed information about the governmental and/or corporate organizations will have to be obtained elsewhere.

The Tibetan Plateau
The Tibetan Plateau in the PRC consists of the high altitude (generally over 3500 m.) region predominantly Tibetan culturally and historically. It consists of Tibet Autonomous region (Xizang), Qinghai, parts of Gansu, western Sichuan, and the northwest corner of Yunnan. Traditional Tibetan names for these areas being U-Tsang, Amdo, and Kham. Outside China the Tibetan Plateau extends into Ladakh, Spiti, Sikkim and Northeast India, as well as Mustang in Nepal. These are not considered in this map.

The following two maps created by the Environment and Development Desk of the Central Tibetan Administration in Dharamsala indicate the prefectures and counties of the Tibetan Plateau. The names given are those recognized by the Central Tibetan Administration.

The Databases
There are three databases in three Excel (.xls) spreadsheets: mineral deposits, salt lake and playa deposits, and petroleum deposits. The three databases have similar formats but have been separated as these different types of deposits are discovered and exploited differently.

Mineral deposits often require expensive exploration techniques, such as widespread stream, earth, and bedrock sampling, exploratory shafts, and diamond drilling. Both trenching and diamond drilling often leave surface modifications visible in Google Earth. Mines are either underground or open pit. They often can be recognized by the (blue roofed) buildings, evidence of exploration, a pit, and a tailings pond (an enclosed area where the waste material goes after processing the ore). Placer mining also often leaves visible traces such as pits and other damage to a river bed.

Salt lakes and playas (a deposit where the ancient salt lake has disappeared) are relatively easy to find and exploit. Tibetans have been exploiting salt lakes for salt, for trade and their own use, for hundreds of years. Basically all one needed to do is show up with a shovel and a means of getting the salt to the market. The relatively recent discovery that some salt lakes also include other valuable minerals like Lithium has added to the lakes' value. These additional minerals can be difficult to extract and could turn a simple, relatively clean operation into an environmental mess without proper application of environmental protection laws and technology. Officials are so often swayed by the opportunity to personally profit from a mining operation that it is unlikely that these will be applied. The Qiadam Basin in Qinghai contains a number of large salt lakes and playas, which have been exploited by the CCP since soon after the revolution.

Petroleum exploration is expensive, requiring large geological and geophysical surveys, and drilling at likely sites. It is carried by large organizations with deep pockets and close connections with the CCP, such as PetroChina. So far, on the Tibetan Plateau, the oil and gas have been found and extracted since the 1950's from the Qiadam Basin in Qinghai, but oil shale exploration is going on in TAR and China is currently looking forward to exploiting these deposits when oil prices get high enough to make it worthwhile.

"Opening Up the West"
Similar to the 19th century U.S. experience of occupying and assimilating the western region of North America through military intervention, subjection of the indigenous peoples, and immigration, in the late 1990s the PRC began a program of "Opening Up the West". This program included plans to build railways, roads, and airports in the western regions of China, the exploration and exploitation of mineral and petroleum resources, development of hydropower projects, and increased, mainly Chinese, tourism. These are supported on the plateau by a program to settle all nomads, forcing them to sell their stock and reside in villages built by the government, and immigration of Chinese workers to work at the mines, hydropower projects, and other construction projects. A thoroughgoing program of propaganda of suppressing outside observers, "patriotic reeducation", etc. while a presenting a "green" agenda and poverty aleviation as the motives to the world and the Chinese public is ongoing.

The plans have advanced considerable since the turn of the century. A railway from Golmud to Lhasa has been constructed, and other railways are in the works. Zangmu Hydropower Project, and many others are under construction throughout the plateau. The earlier small mines in Gyama have been consolidated into one large mine, and is presented as a model project, though it appears that considerable corruption of senior officials was involved. Many small mines operating, and mineral exploration projects are in progress on the plateau. Many of these are visible in Google Earth, or reported on in the media or Internet, even if there is no detailed written description of them available to the public. Primarily Chinese workers are employed on these projects. The local Tibetan population is poorly compensated for their loss of homes, pastures, farmland, or livestock. This type of behaviour is common in China, where CCP officials and their wealthy friends regularly push through mutually profitable projects at the expense of the people.

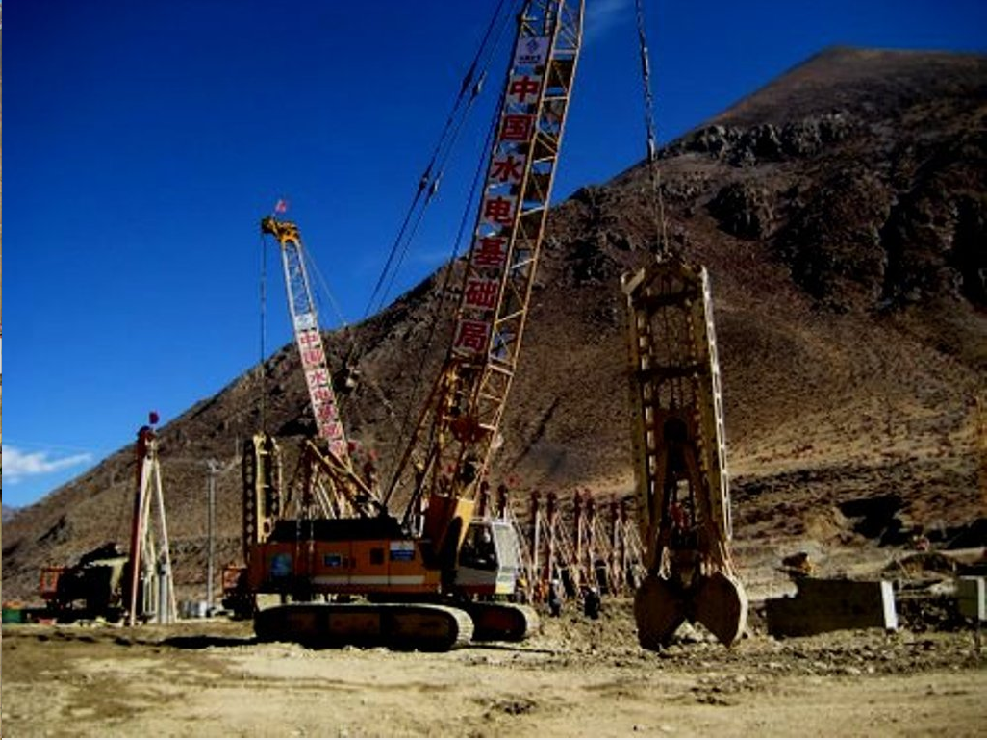

Hydropower and mining are intimately connected in the process of development. Electrical power is needed to operate mines, ore processing plants, smelters, and to provide some measure of comfort to attract immigrant workers. Mines provide the economic base to finance the hydropower projects, which are subsidized by Beijing.

The Contents of the Database
The database of deposits is in three .xls files, one for each of mineral deposits, salt lake and playa deposits, and petroleum deposits. The mineral deposit database is the real focus, but the others are important too. The minerals .xls file will be described.

The first column "Mapped?" simply indicates whether the deposit is on the map or not ("Y" or "N").

The second, third and fourth columns give the Name, Products, and Status of the deposit. There may be more than one Name given (e.g. "Deerni (Durngoi)").The Products are given in abbreviated form ("Au" rather than "Gold"). Status is one of ("Prospect", "Deposit", "Mine"). A Prospect is a deposit we are unsure about. A Deposit has known reserves for which there is good evidence. Either of these could be a mine but we don't know that at the time of publishing. A Mine is a deposit for which there is good evidence that it is being exploited. It may be small or large.

The next column, "Size", is a more complex measure of a deposit's significance. In general, we are treating Size as the amount of product the deposit contains (e.g. Cu 1.5 Mt), but more properly Size should take into account the Grade or the ore as well as how many tonnes have been proven (1% Cu X 50 Mt ore = 0.5 Mt Cu). The higher the Grade the cheaper the deposit is to exploit. The product is also important. For example, Gold is worth a lot more than Copper. 5 tonnes of gold is a Mine. 5 tonnes of copper is an Occurrence. Further, to give some indication of size where we don't have this information, the terms "Small", "Medium", and "Large" are used. The Geological Survey of Japan, along with their map of mineral deposits of Eastern Asia, has published a list of definitions for "Small, "Medium", and "Large" for different products. It classifies some deposits as Large that a practicing exploration geologist would consider small. For example, the Porphyry Copper deposits shown on the map, though Large by GSJ standards, are small by international mining standards (* PORPHYRY DEPOSITS, W.D. SINCLAIR, Geological Survey of Canada, 601 Booth Street, Ottawa)

The next three columns give the Province, Prefecture, and County of each deposit. Though inexact these give important location information. For example, we can tell who the local officials and administrators are, where the population lives relative to the deposit, what their source of incomes is, how many people there are, etc.. If coordinates are not currently available then this information also tells us where to look. Often Google Earth will reveal exploration or a mine once an approximate location is found. If nearby Chinese town/village names are also available then the Google Maps can help to give an even more precise location.

The following three columns give Latitude, Longitude, and Validity, a measure of the given location's accuracy: "GE", "vicinity", "estimated", and blank. A blank indicates we cannot give any supporting evidence that the location is correct, and currently are accepting a knowledgeable opinion. "Estimated" indicates the location is estimated from a map or other imprecise source, such as a Chinese academic article. These are rarely very precise as to deposit locations. "Vicinity" indicates the coordinates were given by a more or less reliable source of information, such as a journal article in the Western academic literature. "GE" indicates that in our opinion the given coordinates are exact (locates a point somewhere on the deposit), and if input to Google Earth will reveal the named deposit. The visible evidence may consist of a mine or signs of mineral exploration. Some cases are more certain than others. The coordinates are presented "as is". Corrections are welcome.

Some examples are:

The Yulong Mine showing the pit and blue roofed processing buildings. Coordinates are at the bottom left and the date of the image on the bottom right.

The Deerni Mine is an example of a much smaller operation than Yulong. Smaller mines are not difficult to find in Google Earth. Two photos showing the tailings pond and the processing plant were also found.

Qulong is a large (by Chinese standards), low grade Prophyry Copper-Gold deposit just east of Lhasa. The network of roads indicate the pattern of diamond drilling used to confirm the extent of the deposit.



The Chongjiang Porphyry Copper deposit is another example where in Google Earth the location of a deposit can be identified by the characteristic pattern of roads used for diamond drilling.

This map is from the 2003 Honglu Chinese website. Honglu was the Chinese company behind getting Continental Minerals involved in Xietongmen. It was also involved in arranging the Jiama Mine deal. The properties indicated were all listed several times with both Canadian and American securities regulators. Where we have no other information on the locations of the deposits these are examples of estimated locations.

The USGS has several large databases of mineral deposits around the world in the form of Google Earth kmz and kml files. Theseare several years old and do not use the latest available data. Where Google Earth has recent images available (obtained within the last few years), the coordinates given by the USGS, with a few exceptions, are found to be incorrect, but most likely in the vicinity of the named deposit. This claim is based on the experience of often being able to find in Google Earth a plausible deposit location in the vicinity of the USGS coordinates. The USGS kml and kmz databases may also fail sometimes by giving different coordinates for one deposit in different databases. In this case searching GE to locate the most plausible alternative is a necessity. Though the USGS website provides a site to send questions and requests for information, our experience is that when questions about accuracy of coordinates and inconsistency of kml databases about deposits on the Tibetan Plateau were made their China Specialist had no interest in correcting the errors in the USGS mineral deposit database. Though useful in a general way, the Geological Survey of Canada's kml database is sufficiently inaccurate with respect to coordinates that we stopped referring to it. A xls file can be downloaded from the Geological Survey of Japan. Though of interest, and doubtlessly the best data at the time, it wasn't particularly useful as well. Amateur deposit databases, such as that at mindat.org fared better, but like the USGS, GSC, GSJ databases are mainly based on coordinates given in academic articles, and are consequently only approximate. Despite this limitation, the USGS mineral deposit databases are invaluable. When used with Google Earth coordinates often can be corrected. Google Earth is constantly updating its database of satellite images and we believe in time every deposit of significance will be revealed by it.

Two examples of using Google Earth to investigate current issues.
1) Recent reports of extensive pollution from the area near Kumbum Gompa south of Xining in Qinghai were supported by GE images locating the large industrial area, a cement plant, and an open pit mine, all of which intersected the rivers on which the local population depended on and complained were being poisoned. The Google Earth views provide significant evidence of damage to the natural waterways.



2) In northern Yushu Prefecture, Qinghai, a large area called the Sanjiangyuan National Nature Reserve, has been set aside, it is said, to protect the grasslands and the sources of the Yellow, Yangtze and Mekong Rivers. Nomads of the region have been forced to settle and sell their herds. A Canadian company Inter-Citic, in a Joint Venture with the Qinghai Geological Survey Institute, is carrying out exploration for gold on the northwest edge of this reserve, and they report having discovered a large deposit just outside the reserve. In Google Earth we can see their camp, and the damage they have done to the grasslands as the result of mineral exploration. There is a stream next to their camp, and if you follow it enters the reserve and, eventually, the Yellow River. The evidence given by GE images suggests that Inter-Citic is polluting the sources of the Yellow River. The area they are in should be in the reserve, if a reserve is necessary at all. Going 50 km to the east, in the heart of the reserve, exploration trenches are visible in GE, very similar to the trenches Inter-Citic has made to expose the bedrock for sampling. This raises the questions as to who is doing this exploration and why is it being permitted.



The next three columns give references. In those cases where they are not particularly solid, think of them as a thread that may lead somewhere useful.

Finally, where we could, owners of the deposit are given. We were not always able to do this in the time we had available, but these columns indicate the direction we are heading. Once a company is identified the people behind it can be identified, then the relations between them. Forbes recently published an article stating 90% of the 1000 richest people in China are either in the CCP or are very closely connected with it. This fact, along with well known high level of corruption of Chinese officials, may explain more than politics or culture.

Areas of Interest
There are several regions which standout with respect to certain types of deposits.
The Qiadam Basin in Haixi prefecture of Qinghai is noted for its numerous large salt lakes and its petroleum deposits. These have been exploited by the PRC since the 1950s.

Just to the north of the Qiadam Basin is a gold belt, the best known mine being Tanjianshan which a Joint Venture between Eldorado Gold Corp of Vancouver, Canada, Qinghai Number One Geological Brigade and Dachaidan Gold Mine (Qinghai).

To the south in Yushu Prefecture of Qinghai is the Songpan - Ganze Mobile Belt, which is associated with gold deposits. The belt extends across Qinghai from the Xoh Nature Reserve, into the Tibetan areas of Sichuan. The noted deposit in this region is the Dachang gold deposit which is owned by Inter-Citic (Canada) and the Qinghai Geological Survey Institute. Inter-Citic reports about 40 tonnes of reserves proven and inferred. Xinhua reports it has 195 tonnes confirmed and "will have proven reserves of 300 tonnes by 2015” ("China says Tibetan gold mine amongst largest in Asia", Phayul, August 30, 2011). While the quantities are exaggerated, and the logic sloppy, what this (Xinhua publishing a promotional article of this sort) does suggest is that the Sanjiangyuan National Nature Reserve (SNNR) will be mined for gold at the very headwaters of the Yellow River. Similar gold deposits are expected to be found in the region. For example, 50 km. to the east, well within the SNNR, exploration trenches can be clearly seen.



A map published by Inter-Citic showing the locations of the Songpan-Ganze gold belt and the Dachang deposit.

In TAR several areas stand out with respect to particular minerals. Two of them, the Gangdese Porphyry Copper Belt extending east-west just north of the Yarlung Tsangpo in the region of Lhasa and the Yulong Porphyry Copper Belt extending north-south parallel to the Drichu from south Qinghai, through Qamdo into Yunnan, are clearly visible on the map. An additional Porphyry Copper belt may also exist in the Changtang.

A Lead-Zinc belt also follows the Nujiang. Chromium is found south the Yarlung Tsangpo in Shannon. There are a number of salt lakes in TAR but only Zabuye seems the only one to have been exploited profitably on any scale.

Information regarding Uranium deposits is a state secret in China. Two we know about are Zonglongde in Riwoche, Chamdo Prefecture, accidentally revealed in a China NetTV SEC filing, and No. 792 Uranium Mine in Thewo County, Gansu, reported in the media due to protests regarding its illegal reopening and resulting pollution. As well as Zonglongde, a number of other deposits in Chamdo mentioned in the China NetTV report are suspected to also be Uranium deposits: Yuqu, Panong, Qinong, and Gexiong. They were claimed to be deposits of minerals which are never extracted except as secondary products.

Internet Sources

ChinaMining

Hunter Dickinson (Continental Minerals, Shetongmon, Shigatse, TAR)

Eldorado (Tanjianshan, Haixi, Qinghai)

Geological Survey of Canada, World and Canadian Mineral Deposits

Geological Survey of Japan, Mineral Resources of East Asia

Google Earth Download

Inter-Citic (Dachang, Yushu, Qinghai)

Beijing Headman Mining Evaluation Firm

Huatailong, the company that operates the Gyama Mine
Mandarin Tools

mindat.org, mineralogical database

Phayul

Radio Free Asia

China Digital Times

U.S. Securities and Exchange Commission, Corporate Filings Search

Canadian SEDAR

USGS Mineral Resources Data System (MRDS)

USGS Mineral Resources On-Line Spatial Data


References
ACADEMIC ARTICLE LIST

If an article concerns a particular deposit, or collection of deposits, the primary name the deposit will follow the names of the authors and year. For example for the Jiama Mine it would look like (author, year, Jiama)

A

(An Yin and T. Mark Harrison, 2000, Himalayan Tibetan Orogen)
An Yin and T. Mark Harrison
GEOLOGIC EVOLUTION OF THE HIMALAYAN TIBETAN OROGEN
Annu. Rev. Earth Planet. Sci. 2000. 28:211–80

B

(Bauer, K.; Childs, G., 2008)
Kenneth Bauer, Geoff Childs;
Demographics, Development, and the Environment in Tibetan Areas; 2008 - 04

C

(Chen Yongqing et al, 2008, Pulang)
Chen Yongqing, Huang Jingning, Liang Zhen
Geochemical Characteristics and Zonation of Primary Halos of Pulang Porphyry Copper Deposit, Northwestern Yunnan Province, Southwestern China
Journal of China University of Geosciences, Vol. 19, No. 4, p.371–377, August 2008

(Chengyou Feng et al, 2009, Tuolugou)
Chengyou Feng, Wenjun Qu, Dequan Zhang, Xingyan Dang, Andao Du, Daxin Li a, Hongquan She
Re–Os dating of pyrite from the Tuolugou stratabound Co(Au) deposit, eastern Kunlun Orogenic Belt, northwestern China
Ore Geology Reviews 36 (2009) 213–220

G

(X.X. Gu et al, 2002 et al, NW Sichuan Au)
X.X. Gu, J.M. Liub, O. Schulzc, F. Vavtarc, M.H. Zheng
Syngenetic origin for the sediment-hosted disseminated gold
deposits in NW Sichuan, China: ore fabric evidence
Ore Geology Reviews 22 (2002) 91– 116

(Guangming LI et al, 2006, Skarn Cu-Au±Mo Deposits)
Guangming LI, Kezhang QIN, Kuishou DING, Tiebing LIU, Jinxiang LI, Shaohuai WANG, Shanyuan JIANG and Xingchun ZHANG
Geology, Ar-Ar Age and Mineral Assemblage of Eocene Skarn Cu-Au±Mo Deposits in the Southeastern Gangdese Arc, Southern Tibet: Implications for Deep Exploration
RESOURCE GEOLOGY, vol. 56, no. 3, 315–336, 2006

(GUO Zu-jun et al, 2008, Qiangtang Petroleum)
GUO Zu-jun, LI Yong-tie, NAN Zheng-bing, YE He-fei
Relationship between deformation structure and petroleum accumulation and preservation, Qiangtang Basin, Tibet
PETROLEUM EXPLORATION AND DEVELOPMENT Volume 35, Issue 5, October 2008

H

(HE Shuye et al, 2009, Yazigou)
HE Shuyue，LI Dongsheng，LI Lianglin，QI Lanying and HE Shoufu
Re—Os Age of Molybdenite from the Yazigou Copper(Molybdenum) Mineralized Area in Eastern Kunlun of Qinghai Province，and Its Geological Significance
Geotectonica et Metallogenia V. 33, No. 2, 236-242, May 2009

(Hou Zengqian et al, 2003, Dongqinnong)
Hou Zengqian, Wang Liquan, Khin Zaw, Mo Xuanxue, Wang Mingjie, Li Dingmou, and Pan Guitang;
Post-collisional crustal extension setting and VHMS mineralization in the Jinshajiang orogenic belt, southwestern China. Ore Geology Reviews 22, 177-199; 2003

(Hou Zengqian et al, 2003, Yulong etc.)
HOU ZENGQIAN, MA HONGWEN, KHIN ZAW, ZHANG YUQUAN, WANG MINGJIE, WANG ZENG, PAN GUITANG, TANG RENLI;
The Himalayan Yulong Porphyry Copper Belt: Product of Large-Scale Strike-Slip
Faulting in Eastern Tibet; 2003

(Hou Zengqian et al, 2003, Yulong belt)
Hou Zengqian, Ma Hongwen, Khin Zaw, Zhang Yuquan, Wang Mingje, Wang Zeng, Pan Guitang, Tang Renli
The Himalayan Yulong Porphyry Copper Belt: Product of Large-Scale Strike-Slip Faulting in Eastern Tibet
Economic Geology Vol. 98, 2003, pp. 125–145

(Z.Q. Hou et al, 2004, Adakitic intrusives S Tibet)
Z.Q. Hou, Y.F. Gao, X.M. Qu, Z.Y. Rui, X.X. Mo
Origin of adakitic intrusives generated during mid-Miocene east-west extension in southern Tibet
Earth and Planetary Science Letters 220 (2004) 139-155

(Zengqian Hou et al, 2007, Sanjiang metallogenesis)
Zengqian Hou, Khin Zaw, Guitang Pan, Xuanxue Mo, Qiang Xu, Yunzhong Hu, Xingzhen Li
Sanjiang Tethyan metallogenesis in S.W. China: Tectonic setting, metallogenic epochs and deposit types
Ore Geology Reviews 31 (2007) 48–87

(Hou Zengqian, 2007, Yulong)
Hou Zengqian, Xie Yuling, Xu Wenyi, Li Yinqing, Zhu Xlangkun, Khin Zaw, G, Beaudoin, Rui Zongyao, HUang Wei, Luobu Ciren
Yulong Deposit, Eastern Tibet: A High-Sulfidation Cu-Au Porphyry Copper Deposit in the Eastern Indo-Asian Collision Zone
International Geology Review, Vol. 49, 2007, p. 235–258.

(HOU Zeng-qian et al, 2006, Tibetan Plateau Metallogeneses)
HOU Zeng-qian, MO Xuan-xu, YANG Zhi-ming, WANG An-jian, PAN Gui-tang, QU Xiao-ming, NIE Feng-un
Metallogeneses in the collisional orogen of the Qinghai-Tibet Plateau：Tectonic
setting, tempo-spatial distribution and ore deposit types
GEOLOGY IN CHINA Vol．33．No．2, Apr，2006

(Zengqian Hou et al, 2007, Sanjiang Metallogenesis)
Zengqian Hou, Khin Zaw, Guitang Pan, Xuanxue Mo, Qiang Xu, Yunzhong Hu, Xingzhen Li;
Sanjiang Tethyan metallogenesis in S.W. China: Tectonic setting, metallogenic epochs and deposit types; 2007

(Zengqian Hou et al, 2008, Gangdese porphyry copper belt)
Zengqian Hou, Zhiming Yang, Xiaoming Qu, Xiangjin Meng, Zhenqing Li, G. Beaudoin, Zongyao Rui, Yongfeng Gao, Khin Zaw;
The Miocene Gangdese porphyry copper belt generated during post-collisional extension in the Tibetan Orogen; 2008

(Zengqian Hou et al, 2009, REE Belt)
Zengqian Hou, Shihong Tian, Yuling Xie, Zhusen Yang, Zhongxin Yuan, Shuping Yin,
Longsheng Yi, Hongcai Fei, Tianren Zou, Ge Bai, Xiaoyu Li
The Himalayan Mianning–Dechang REE belt associated with carbonatite–alkaline
complexes, eastern Indo-Asian collision zone, SW China
Ore Geology Reviews 36 (2009) 65–89

(Zengqian Hou & Nigel Cook, 2009, Tibet Metallogenesis)
Zengqian Hou, Nigel J. Cook
Metallogenesis of the Tibetan collisional orogen: A review and introduction
to the special issue
Ore Geology Reviews 36 (2009) 2–24

(Hu Rui-Zhong, 2002, Carlin Au)
Hu Rui-Zhong, Su Wen-Chao, Bi Xian-Wu, Tu Guang-Zhi, Albert H. Hofstra
Geology and geochemistry of Carlin-type gold deposits in China
Mineralium Deposita (2002) 37: 378–392

J

(Jiajun Liu, 2002, Sichuan Au Deposits)
Jiajun Liu, Minghua Zheng, Jianming Liu, Xuexiang Gua,
Yufeng Zhou, Caixia Feng
Mechanical transport of metallogenic materials in endogenic hydrothermal solutions: evidence from the microspherules in micro-disseminated gold deposits, northwestern Sichuan, China
Ore Geology Reviews 22 (2002) 1 –16

(Jiankang Li et al, 2006, Jiajika)
Jiankang Li, Denghong Wang, Dehui Zhang, and Xiaofang Fu;
The Source of ore-forming Fluid in Jiajika Pegmatite Type Lithium Polymetallic Deposit, Sichuan Province. Acta Petrologica et Mineralogica [Yanshikuang Wuxue Zazhi] 25(1), 45-52; (2006)

(Jingwen Mao et al, 2002, Zhebo)
Jingwen Mao, Yumin Qiu, Goldfarb, R.J., Zhaochong Zhang, Garwin, S., and Ren Fengshou ;
Geology, distribution, and classification of gold deposits in the western Qinling belt, central China. Mineralium Deposita 37(3/4), (2002)

(Jinxiang Li et al, 2011, Duolong Bangongco)
Jinxiang Li, Kezhang Qin, Guangming Li, Bo Xiao, Junxing Zhao, Lei Chen
Magmatic-hydrothermal evolution of the Cretaceous Duolong gold-rich
porphyry copper deposit in the Bangongco metallogenic belt, Tibet: Evidence
from U-Pb and 40Ar/39Ar geochronology
Journal of Asian Earth Sciences 41 (2011) 525–536

K

(Khin Zaw et al, 2007, Deposit types of S. China)
Khin Zaw, Stephen G. Peters, Paul Cromie, Clive Burrett, Zengqian Hou
Nature, diversity of deposit types and metallogenic relations of South China
Ore Geology Reviews 31 (2007) 3–47

L

(Lafitte, G, 2007)
Gabriel Lafitte;
Current State of Mining in Tibet; 2007

(LI Guangming et al, 2005 ,Gangdese belt dating)
LI Guangming, RUI Zongyao, WANG Gaoming, LIN Fangcheng, LIU Bo, SHE Hongquan, FENG Chengyou, QU Wenjun
Molybdenite Re-Os dating of Jiama and Zhibula polymetallic copper deposits in Gangdese metallogenic belt of Tibet and its significance
MINERAL DEPOSITS May 2005

(LI Jian-kang et al, 2006, Jiajika)
LI Jian-kang, WANG Den-hong, ZHANG De-hui and FU Xiao-fang
The source of ore-forming fluid in Jiajika pegmatite type lithium polymetallic deposit，Sichuan Province
ACTA PETROLOGICA ET MINERALOGICA, Vol 25, No 1, Jan．2006

M

(MA Hui—ying, 2009. Xiaowolong)
MA Hui—ying，LIU Ji-shun，YIN Li—jun，LIU De-li，YANG Li—gon
Geological feature and exploration sign of Xiaowolong tin-iron—tungsten polymeallic deposit in Dulanxian in Qinghai province
MINERAL RESOURCES AND GEOLOGY V01．23，NO．4 Aug．2009

(Steffen Mischke, 2010, Qaidam Basin)
Steffen Mischke, Zhencheng Sun, Ulrike Herzschuh, Zizhen Qiao, Naida Sun
An ostracod-inferred large Middle Pleistocene freshwater lake in the presently
hyper-arid Qaidam Basin (NW China)
Quaternary International 218 (2010) 74–85

P

Stephen G. Peters, Warren J. Nokleberg, Jeff L. Doebrich, Walter J. Bawiec, Greta Orris, David M. Sutphin, and David R. Wilburn
Geology and Nonfuel Mineral Deposits of Asia and the Pacific
Open-File Report 2005 –1294C, U.S. Department of the Interior, U.S. Geological Survey

(Stephen G. Peters et al, 2005, USGS Mineral Deposits of Asia)

(SHE Hongquan et al, 2005, Gangdese skarn)
SHE Hongquan, FENG Chengyou, ZHANG Dequan, PAN Guitang, LI Guangming
Characteristics and metallogenic potential of skarn copper-lead-zinc polymetallic deposits in central eastern Gangdese
MINERAL DEPOSITS May 2005

Q

(Qu Xiaoming et al, 2007, Gangdese Porphyry Genesis)
Qu Xiaoming, Zengqian Hou, Khin Zaw, Li Youguo
Characteristics and genesis of Gangdese porphyry copper deposits in the southern Tibetan Plateau: Preliminary geochemical and geochronological results
Ore Geology Reviews 31 (2007) 205–223

R

S

(SHE Hong—quan et al, 2007, Ulan Uzhur)
Geological characteristics and genesis of the Ulan Uzhur porphyry copper deposit in Qinghai
SHE Hong—quan, ZHANG De—quan, JING xiang—yan, GUAN Jun,
ZHU Hua—pin, FENG cheng—you, LI Da一xin
GEOLOGY IN CHINA V01．34．No．2 Apr., 2007

(Shen Yongsheng et al, 2009, Hongshuihe)
SHEN Yong—sheng，WANG Xu—chun，ZHANG Yu·jie
Study on genesis and geological characteristics of Hongshuihe iron deposit in Qinghai province
MINERAL RESOURCES AND GEOLOGY V01．23，No．4 Aug．，2009

Shenghao Yan et al, 2003, Meiduo)
mindat

(SHE Hong—quan et al, 2007, Ulan Uzhur)
Geological characteristics and genesis of the Ulan Uzhur porphyry copper deposit in Qinghai
SHE Hong—quan，ZHANG De—quan，JING xiang—yan，GUAN Jun，
ZHU Hua—pin，FENG cheng—you，LI Da一xin
GEOLOGY IN CHINA V01．34．No．2 Apr．，2007

(Sihong Jiang et al, 2009, Mayum)
Sihong Jiang, Fengjun Nie, Peng Hu, Xinrong Lai, Yifei Liu
Mayum: an orogenic gold deposit in Tibet, China
Ore Geology Reviews 36 (2009) 160–173

(Singer, D.A. et al, 2008, Porphyry Cu Deposits)
Singer, D.A., Berger, V.I., and Moring, B.C.:
Porphyry copper deposits of the world: Database and grade and tonnage models, 2008. US Geological Survey Open-File Report 2008-1155; (2008)

T

(Taihe Zhou et al, 2002, Gold deposit in China)
Taihe Zhou, Richard J. Goldfarb, G. Neil Phillips
Tectonics and distribution of gold deposits in China – an overview
Mineralium Deposita (2002) 37: 249–282

(TANG Gao-lin et al., 2006, Liwu)
TANG Gao-lin,WANG Fa-qing,QOU Lin-lin;
Geological Characteristics and Prospecting Perspective of the Liwu Copper Deposit in Sichuan,WS China; 2006 - 04

V

(A. Vengosh, 1995, Qaidam Basin)
A. Vengosh, A.R. Chivas, A. Starinskyb, Y. Kolodnyb, Zhang Baozhenc, Zhang Pengxi
Chemical and boron isotope compositions of non-marine brines from the Qaidam Basin, Qinghai, China
ChemicalGeology 120 (1995) 135-154

W

(R.L. Wang, 2002, Zabuye)
R.L. Wang, S.C. Scarpitta, S.C. Zhang, M.P. Zheng
Later Pleistocene/Holocene climate conditions of Qinghai-Xizhang Plateau (Tibet) based on carbon and oxygen stable isotopes of Zabuye Lake sediments
Earth and Planetary Science Letters 203 (2002) 461-477

(WANG Gui-hong et al, 2008, N Qaidam Basin)
WANG Gui-hong, MA Da-de, ZHANG Qi-quan, LI Jun
Basin-mountain tectonic pattern and hydrocarbon exploration domain in north margin of Qaidam Basin
PETROLEUM EXPLORATION AND DEVELOPMENT Volume 35, Issue 6, December 2008

(Wang Jun, Zhang Jun, 2001, Mazhala)
Wang Jun, Zhang Jun
Metallogenic character and prospecting direction of the Mazhala gold-antimony deposit, southern Tibet
Gold Geology Vol. 7, No. 3, Sep. 2001

(WEI Lejun, 2002, Dongco)
WE1 Lejun, ZHENG Mianping, LIU Xifang, CAI Keqin, NIE Ben
Discovery of Borax-bearing Mirabilite Beds in Dong Co, Northern Tibet, and Its Palaeoclimatic Significance
Vol. 76 No. 3 ACTA GEOLOGICA SINICA Sept. 2002

(Wenxin Xu et al, 2000, Tongyugou)
Wenxin Xu, Minyang Chen, Chunyong Pang, and Heng Li : Pb Isotope Study of Some Nonferrous Metallic Deposits in China. Acta Geologica Sinica 74(2), 316-320; (2000)

(Weiguang Zhu et al, 2001, Xiacun)
Weiguang Zhu, Chaoyang Li, and Hailin Deng;
Sulfur and lead isotope geochemistry of the Xiacun silver-polymetallic ore deposit in Sichuan Province. Acta Mineralogica Sinica 21(2), 219-224; (2001)

(WU Xiaoxia et al, 2007, Galinge)
WU Xiaoxia, BAO Guangying, YI Youchang, ZHANG Fenying
The Study on the Genesis and Geological Characteristics of Galinge High - Grade Iron Deposit of Qinghai Province
Gold Science and Technology V. 15, No. 4, Aug. 2007

(Wenyi Xu et al, 2009, Xiongcun)
Wenyi Xu, Fengchu Pan, Xiaoming Qu, Zengqian Hou, Zhusen Yang, Weishi Chen,
Dan Yang, Yanhe Cui
Xiongcun, Tibet: A telescoped system of veinlet-disseminated Cu (Au) mineralization and late vein-style Au (Ag)-polymetallic mineralization in a continental collision zone
Ore Geology Reviews 36, 174–193; (2009)

X

(Xiang Huang et al, 2010, Jiama)
Xiang Huang, Mika Sillanp, Egil T. Gjessing, Sirpa Peräniemi, Rolf D. Vogt;
Environmental impact of mining activities on the surface water quality in Tibet:
Gyama valley; 2010 - 05

(Xiangjin Meng et al, 2007, Luobadui)
Xiangjin Meng, Zengqian Hou, Peisheng Ye, Zhushen Yang, Zhenqing Li, and Yongfeng Gao;
Characteristics and ore potentiality of Gangdese silver-polymetallic mineralization belt in Tibet. Mineral Deposits 26(2), 153-162; (2007)
(Xiaoliang Feng et al, 2007, Liwu)

(Xiaofeng Li, 2007, Daduhe Au)
Xiaofeng Li, Jingwen Mao, Chunzeng Wang, Yasushi Watanabe
The Daduhe gold field at the eastern margin of the Tibetan Plateau: He, Ar, S, O, and H isotopic data and their metallogenic implications
Ore Geology Reviews 30 (2007) 244–256

Xiaoliang Feng, Mingjie Wang, Chengmin Wen, and Huihua Zhang;
The Preliminary Study of the Exploration Potential of the Liwu Copper Deposit and Its Surrounding Areas, Western Sichuan. Sedimentary Geology and Tethyan Geology [Chenji Yu Tetisi Dizhi] 28(1), 9-13; (2007)

(Xiaoming Qu, 2006, Hongbo Xin, Gaerqiong)
Xiaoming Qu and Hongbo Xin ;
Ages and tectonic environment of the Bangong Co porphyry copper belt in western Tibet, China. Geological Bulletin of China 25(7), 792-799; 2006

(Xinyou Zhu et al, 2006, Xitieshan)
Xinyou Zhu, Jiniu Deng, Jingbin Wang, Longjun Lin, and Junchang Fan;
Study of two types of ore bodies in Xitieshan lead-zinc SEDEX deposit, Qinghai Province. Mineral Deposits 25(3), 252-262.(2006)

(Xiugen Fu et al, 2009, Shengli Oil Shale)
Xiugen Fu, Jian Wang, Yuhong Zeng, Fuwen Tan, Jianglin He
Concentrations and modes of occurrence of platinum group elements in the
Shengli River oil shale, northern Tibet, China
Fuel 89 (2010) 3623–3629

(Xiugen Fu et al, 2010, Changshe Oil Shale)
Xiugen Fu, Jian Wang, Yuhong Zeng, Fuwen Tan, Xinglei Feng
REE geochemistry of marine oil shale from the Changshe Mountain area, northern Tibet, China
International Journal of Coal Geology 81 (2010) 191–199

(Xiugen Fua, 2011, Shengli Oil Shale)
Xiugen Fua, Jian Wanga, Yuhong Zengb, Fuwen Tana, Jianglin Hea
Geochemistry and origin of rare earth elements(REEs) in the Shengli River oil shale, northern Tibet, China
Chemie der Erde71( 2011) 21–30

Y

Yang Jingsui, Shi Rendeng, Wu Cailai, Wang Xibin
Dur'ngoi Ophiolite in East Kunlun, Northeast Tibetan Plateau: Evidence for Paleo-Tethyan Suture in Northwest China
Journal of Earth Science, Vol. 20, No. 2, p. 303–331, April 2009

(Yang Jingsui, 2009, Dur'ngoi Ophiolite)

(Wenbo Yang et al, 1995, Dabusun)
Wenbo Yang, Ronald J. Spencer, H. Roy Krouse, Tim K. Lowenstein, E. Casas
Stable isotopes of lake and fluid inclusion brines, Dabusun Lake,
Qaidam Basin, western China: Hydrology and paleoclimatology
in arid environments
Palaeogeography, Palaeoclimatology, Palaeoecology 117 (1995) 279-290

(Yanjing Chen, 2007, Kendekeke)
Yanjing Chen, Huayong Chen, Khin Zaw, Pirajno, F., and Zengjie Zhang;
Geodynamic settings and tectonic model of skarn gold deposits in China: An overview. Ore Geology Reviews 31, 139-169; (2007)

(YAO Peng et al, 2002, Jiama Qulong)
YAO Peng ,WANG Quan-hai,LI Jin-gao;
Ore and ore resource prospects of the Jiama-Qulong ore concentration area,Tibet; 2002 - 02

(Yuwang Wang, 2000, Deerni)
Yuwang Wang, Kezhang Qin, Yanggeng Tan, and Zenqian Hou;
The Derni Cu-Co Massive Sulfide Deposit, Qinghai Province, China: Ultramafic Volcanic-hosted Submarine-exhalative Mineralization. Exploration and Mining Geology 9(3/4), 253-264; (2000)

(Yuqi Dang et al, 2008, Qaidam Gas)
Yuqi Dang, Wenzhi Zhao, Aiguo Su, Shuichang Zhang_, Maowen Li, Ziqiang Guan, Dade Ma, Xinling Chen, Yanhua Shuai, Huitong Wang, Yanhu Tan, Ziyuan Xu
Biogenic gas systems in eastern Qaidam Basin
Marine and Petroleum Geology 25 (2008) 344–356

(YU Pu—sheng et al, 2007, N. Plateau Mineral Belts)
YU Pu—sheng，LI Rong—she，JI Wen—hua，YANG Yong—cheng，MENG Yong，ZHAO Zhen—ming，CHEN Shou—jian
Division of Metallogenic Belts in the Northern Qinghai—Tibet Plateau
NORTHWESTERN GEOLOGY V01．40 No．4 2007

Z

(Zhang Lin et al, 2009, Gaerqiong)
ZHANG Lin，XIAO Yuan-fu，HU Tao
Geological Characteristics and Analysis of Ore-forming Conditions for Copper Deposits of Gaer-qiong in Tibet
Sichuan Nonferrous Metals October 2009

(ZHANG Chun-lin et al, 2008, Gas Hure)
ZHANG Chun-lin, GAO Xian-zhi, LI Yan-fei, MA Da-de
Petroleum migration in the Gas Hure Oilfield, Qaidam Basin, NW China
PETROLEUM EXPLORATION AND DEVELOPMENT Volume 35, Issue 3, June 2008

(Zhang Dequan et al, 2009, Tanjianshan)
Zhang Dequan, She Hongquan, Feng Chengyou, Li Daxin, Li Jinwen;
Geology, age, and fluid inclusions of the Tanjianshan gold deposit, western China:
Two orogenies and two gold mineralizing events; 2009 - 06

(Zhang Xiaobao et al, 2003, Qaidam Oil & Gas)
ZHANG Xiaobao, HU Yong, DUAN Yi, MA Liyuan, MENG Zifang, HE Peng,
ZHOU Shixin and PENG Dehua
Geochemical Characteristics and Origin of Natural Gases in the Qaidam Basin, China
Vol. 77 No. 1, ACTA GEOLOGICA SINICA ,March 2003

(Zhang Ying et al, 2009, E. Qaidam Gas)
Zhang Ying, Li Zhisheng, Wang Dongliang, Wang Xiaobo
Geochemical characteristics and play targets of gas in eastern Qaidam Basin, NW China
PETROLEUM EXPLORATION AND DEVELOPMENT Volume 36, Issue 6, December 2009 Online English edition of the Chinese language

(ZHENG YouYe et al, 2007, Zhunuo)
ZHENG YouYe, ZHANG GangYang, XU RongKe,GAO ShunBao, PANG YingChun, CAO Liang, DU AnDao & SHI YuRuo
Geochronologic constraints on magmatic intrusions and mineralization of the Zhunuo porphyry copper deposit in Gangdese, Tibet
Chinese Science Bulletin, November 2007, vol. 52, no. 22, 3139-3147

(Zhiming Yang et al, 2009, Qulong)
Zhiming Yang, Zengqian Hou, Noel C. White, Zhaoshan Chang, Zhenqing Li, Yucai Song;
Geology of the post-collisional porphyry copper–molybdenum deposit at Qulong, Tibet; 2009 - 03

(Zhusen Yang et al, 2009, TAR Sb)
Zhusen Yang, Zengqian Hou, Xiangjin Meng, Yingchao Liu, Hongcai Fei, Shihong Tian,
Zhenqing Li, Wei Gao
Post-collisional Sb and Au mineralization related to the South Tibetan detachment
system, Himalayan orogen
Ore Geology Reviews 36 (2009) 194–212

(Zigui Yan, 2006, Gala)
Zigui Yan ;
Geological Characteristics of Gold Deposits in Ganzi-Litang Fault Zone and Preliminary Discussion on Their Ore-Control Factors. Contributions to Geology and Mineral Resources Research [Dizhi Zhaokuang Luncong] 21(s), (2006)

Read more on this article...

Sharing data on mining in Tibet

Here is a set of data on mining in Tibet that hopefully will be useful to some of the readers. This data is the most comprehensive and up-to-date publicly available information on the topic. If you have any additions and corrections to suggest, please let us know.

Also, see some recent Google Earth images (taken September 2010) at the bottom of this blog post for evidence of extensive mining exploration being conducted within the Three Rivers Headwaters Nature Reserve area, specifically near Chumarleb or Dachang Mines.

First, a map of Mining in Tibet.


Here are three spreadsheets with details on the information provided on this map and more, including information sources that you may refer to yourself.

First, a spreadsheet on Mining in Tibet.

Second, on Mining Tibet's Salt Lakes.

And third, on Mining for Petroleum in Tibet.

Now, let's move on to recent Google Earth images that clearly show mineral prospecting trenches (straight lines) in and around Chumarleb (ཆུ་དམར་ལེབ་) county. There are a lot of information on these mines online if you do a search on "Dachang mine". All the images below have latitude and longitude coordinates at the bottom if you want to check for more surprises.

First a larger regional image. Notice that the area is close to the two famous lakes, Kyareng (མཚོ་སྐྱ་རེངས་) and Ngoreng (མཚོ་སྔོ་རེངས་), situated at source of Machu (མ་ཆུ་ / Yellow) River. On the opposite corner are a bunch of orange and blue dots stacked on top of each other. These colored dots, and I believe the trenches as well, are the works of Inter-Citic, a "Canadian public company."



Now a closeup of the trenches. Trenches are dug in straight lines so their findings can be uploaded into the database. After digging the trenches, they also drill into the ground to see what's deeper inside. Computers then estimate what's (how much gold, for example) in between the points.





Here are two images that prove recent drilling activity in these trenches. The first one taken on August 8, 2010 shows the trench (ignore the yellow pin "Drill" marker. The second image below, which was taken a month after that (September 7, 2010), show machines, a shed and a vehicle, indicating active drilling activity.



The trenches can be seen as far as 50 km SE of the main mining sites, just near the Kyareng Lake.


You can also see the main camp of the miners, most probably of Inter-Citic.


There is also some interest whether there is "rare earth" in Tibet. So far we didn't find any rare earth mines in Tibet, although there are four mines in Southeast Sichuan Province. Here are two scientific papers with maps that describe rare earth elements in Tibet.

Hou, Z. & Cook, N.J. (2009). Mettalogenesis of the Tibetan collisional orogen: A review and introduction to the special issue. Ore Geology Reviews, 36 (2009) 2-24.

Hou, Z., Tian, S., Xie, Y., Yang, Z., Yuan, Z, Yin, S., Yi, L. Fei, H., Zou, T., Bai, G., & Li, X. (2009). The Himalayan Mianning-Dechang REE belt associated with carbonatite-alkaline complexes, eastern Ind0-Asian collision zone, SW China. Ore Geology Reviews, 36 (2009) 65-89.

If any of you have information about exploration of rare earth elements in Tibet, please let us know.

THanks!
Read more on this article...

Monitoring Tibet through Google Earth - 2

A couple of quick updates: Zhikhong and Thrangu Dam

Last year, Tibetan Plateau blog reported a doctored Google Earth image, which suspiciously covers the Zhikhong Dam, located approximately 100 km NE of Lhasa. While Google did not respond to my queries, the company has now uploaded a different, untampered image of the dam. See below.



THRANGU DAM
In April 14, 2010, a huge earthquake hit Yushu County and caused massive destruction to life and property. The tremors had also damaged a dam, threatening to flood the main city located downstream.

Google Earth has uploaded a April 28, 2010 image of the dam, which shows the reservoir mostly empty.



Check out these images on Google Earth yourself! Notice the coordinates (latitude and longitude) at the bottom of most GE images posted on this blog. Share what you find with us and your friends!

Read more on this article...

Monitoring development and sharing information through Google Earth

A friend forwarded this news story to me. About 3000-4000 Tibetans will have to leave their ancestral homes and villages to make way for a hydro-power project near Lhasa's Lhundrup county in a place called Phondo (ཕོད་མདོ་). Most of these people are agro-pastoralists. The farmers have been ordered to leave their homes by next year and that they cannot practice their traditional livelihood there any more. Farmers are worried that they will be forced to sell their animals and relocated to separate areas. Their requests for better relocation plans have been ignored. According to the report, all of the construction workers that have moved into the region are Chinese and there are a few thousand soldiers now stationed at the site.

This project is documented in our last map of Hydropower Projects on the Yarlung Tsangpo (Brahmaputra) river. This is only one of the many, many dams that will be built on the Tibetan Plateau. Tens of thousands more will be forcefully displaced from their homes to make way for these projects. What makes this situation really gloomy is that this news story, for example, did not come to the attention of most Tibetan internet users and Tibetan rights activists sooner. In the past we could blame lack of information and news from Tibet for our ignorance, but today we have such amazing technological tools as Google Earth at our disposal that can be effectively used for our information-sharing and advocacy work. Here's an example:

Someone has posted these some colorful still shots from what seems like a video clip on Google Earth:












These pictures, including some of the construction equipment, were probably taken by tourists visiting the area. All of these photos are from Google Earth:








Check out the comment posted by one of the visitors to the site:



Check out these Google Earth images of the area. The first two annotated images are from my colleagues at the Central Tibetan Administration's Environment and Development Desk. The remaining images, some of them are from November 8, 2008 and some of them are as recent as March 13, 2010. These images clearly show the villages and the fields, which will be inundated by the reservoir or developed beyond recognition. If only someone would archive all of these Google Earth images of Tibetan villages and pastoral lands before they are developed and their images updated on Google Earth.
















If you would like to read some Tibetan language news from China, see this, this, this. You can get these news stories by doing a google search of "ཕོད་མདོ་" (phod mdo or Phondo). Read more on this article...

Dams on Yarlung Tsangpo (Brahmaputra): More Info

Thanks to 'Stone Routes' who just posted a comment on one of my posts about dams on Yarlung Tsangpo. It made me realize that I had forgotten to share further information about the five dams on the river (also called the Brahmaputra).

These five dams are Zangmu (རྫམ་ or dzam), Jiacha (རྒྱ་ཚ་ or Gyatsa), Zhongda (སྒྲོམ་མདའ་ or Zhomda) and Lengda (གླིང་མདའ་ or Lingda), and Jiexu and Langzhen. Only Zangmu project is being built right now and others are in the project pipeline. I am unable to find the original Tibetan names for Jiexu and Langzhen so far. If any of the readers know the Tibetan names, please let me know. I used the Tibetan & Himalayan Library to find the latitudinal and longitudinal coordinates of Zangmu (29.14 and 92.52), Gyatsa (29.11 and 92.71) and Lingda (29.07 and 92.72) townships. Here is a Google Earth image of the location of these five dam sites.



You can use the coordinates at the bottom of the image or the inverted 'V' shape of the river on the right hand corner of the image to navigate approximate locations. Better still if you have good internet connection to browse Google Earth online, you can use this link prepared by Kevin Li of the International Rivers Network.
Read more on this article...

Doctored Google Earth Images: Is Google Helping China Falsify Information?

A dam located about 100 km NE of Lhasa, known as the Zhikhong Dam, is appearing mysteriously vague in Google Earth (GE). GE shows the surrounding area including the large reservoir in high resolution but the image of the dam is in low-resolution. It is possible to see strips of old images between new images in GE but in this case the images fit the end of the reservoir exactly, and the boundary between the two images is curved, which is unusual.

A jpg image of the region taken from GE is posted here (below). I don't know how to upload kmz files or links that will take readers directly into Google Earth. So readers interested in looking up more closely should use the coordinates at the bottom of the image. Going up closer to the location in GE is much more convincing than the jpg photo shared here.



I mentioned this observation to a friend and colleague from Green College, who used to work for Google Maps, the amazing Ducky. She checked the images and found them suspicious. Upon her advice, we decided to alert Google Earth about this and to see their response.

What do you think is going on here? Is Google Earth covering up for China? Or is someone supplying GE with doctored images? Or may be someone in Google Earth is working against company policies?

Did you know that a giant alian bug was found in a part of Germany in GE?

Read more on this article...

New Map Sheds Light on Tawu Protest and the Future of Eastern Tibet

Recently it was reported that tens of thousands of Tibetans gathered in Tawu county of Kandze Tibetan Autonomous Prefecture to protest against government plans to build a large dam between Nyagchu and Tawu counties. Local authorities had issued a relocation notice to the locals, which in turn incited the protest. The incident resulted in the police shooting at the protesters.

In a previous blog post, I opined that the dam is the Lianghekou dam because news reports do not mention the name of the dam. The Lianghekou will be one of the world's tallest dams at nearly 300 meters in height. The dam is designed with a 6.33 billion cubic meter capacity reservoir that will extend 90 km from the dam up the Nyagchu River. A reservoir so large will most likely require relocation of thousands of farmers living along the river.

It should be noted here that Lianghekou is just one of the 21 dams built/planned on the Nyagchu River by the Ertan Hydropower Development Company. I write this blog post to share the following map of these dams.



I will not repeat what is clearly shown in the map. Click on the map to deduce for yourself how these dams will change the face of eastern Tibet. This map is the most accurate publicly available document of its kind.

Here are three questions I would like to pose to readers to ponder and research:

1. Where are most of the corruption happening within these projects, assuming corruption is endemic in the Chinese dam industry?

2. Where will most of the power generated from these dams be diverted? To the west for China's most ambitious copper mine/smelter, the Yulong, or to the east for Chinese cities, or for the local communities?

3. What is the best way to raise awareness about the social and environmental costs of these projects within China?

Dams Planned, Under Construction, or Operated by Ertan Hydropower Development Company, Ltd. on the Nyagchu (Yalong River), Sichuan, PRC

There are currently 21 hydropower dam planned, under construction, or operated on the Nyagchu (Yalong River) by Ertan Hydropower Development Company, Ltd.. These are listed below and their locations shown on the map above. The five categories are those given on the Ertan website and are most likely out of date. While the operational dams and dams under construction are still correct, it is possible that one or more of the dams said to be in the preparatory stage to be in fact more accurately characterized as under construction.

Location of Projects on the Map

The positions of the projects on the map have been estimated from the Ertan Cascade Projects Planning chart, several maps showing planned dams along the Nyagchu, a 1984 report on dams planned in the PRC by U.S. Department of Commerce which included a map and a cascade chart for all but one of the dams from Lainghekou south, and additional geographical information about the dams. The locations of projects from Lianghekou south have been confirmed by at least two sources as well as the Cascade Projects Planning chart. The distances up the river were also verified using the path option in Google Earth, which in a couple of cases was surprisingly accurate. The Ertan dam is visible in Google Earth image so coordinates are available for it. The map is not definitive (i.e. is not based on a exact coordinates verified on the ground), but is accurate for its scale, based on information currently publicly available. It corrects some of the maps which were used as sources, and is more accurate and complete than any we were able to find.

The following information are directly from the website of Ertan Hydropower Development Company.

Power Station in Operation

Ertan
The Ertan website states "Ertan Hydropower Station is China’s largest hydropower station completed in the 20th century. Construction of Ertan Power Station created several “No. Ones” in China and in the world, which are:

No. ones in China:
1. China’s first high dam exceeding 200m.
2. China’s largest group of underground caverns and tunnels (also the largest in Asia).
3. China’s largest power plant built in the 20th century (with a total capacity of 3,300MW).
4. China’s largest unit capacity of 550MW, realizing a big leap from 335MW to 550MW.
5. China’s first hydropower project fully open for international competitive bidding.

No. ones in the world:
1. A project for which the World Bank provided the largest loan as a single project.
2. The total load of 980 tonnes taken by the dam and the designed spillway capacity of 22,480 m3/s are the largest among high dams in the world.
3. The cross section of the diversion tunnels (23m high by 17.5m wide) is the largest in the world."


Projects Under Construction

Jinping I
Located in the counties of Yanyuan and Muli, Liangshan Yi Autonomous Prefecture, Sichuan Province. Its large reservoir makes it a controlling project in the lower reach of the main river. Jinping-I is huge in scale, and power generation is its main purpose. The project has a total installed capacity of 3,600MW (6 × 600MW). Its total storage capacity is 7.76 billion m3, and with a regulation storage of 4.91 billion m3, it is a storage capacity is 7.76 billion m3, and with a regulation storage of 4.91 billion m3. The project consists of permanent structures categorized as water retaining, spillway and dissipation, and power tunnels and powerhouse complex. Its 305m-high double curvature concrete arch dam is one of the world’s highest dams. Total construction period of the project is 9 years and 3 months, and its total static investment is RMB19.68 billion yuan, while the total dynamic investment is RMB24.58 billion yuan.

Jinping II
Located on the large Jinping River Bend, and is the second of the five cascade projects on the river section from Kala down to the estuary. Jinping-II is designed to cut the 150km river bend by a group of power tunnels to use the natural drop created by the bend. The project primarily consists of a headwork sluice dam, spillway structures, power tunnels and powerhouse complex. The dam is 7.5km downstream of Jinping-I dam. Jinping-II reservoir itself only has a capacity of daily regulation, but when jointly operated with Jinping-I, it also has the capacity of yearly regulation. The 4 power tunnels have an average length of 16.6km and an excavated diameter of 13m, which are among the world’s longest and largest hydraulic tunnels. The powerhouse complex sits underground on the other side of the river bend. The project has a total installed capacity of 4,800MW (8 × 600MW), which gives a multiyear average annual generation of 24.23TWh. Total construction period of the project is 8 years and 3 months, and its total static investment is RMB24.98 billion yuan, while the total dynamic investment is RMB29.77 billion yuan.


Projects in Preparatory Stage

Guandi
Situated 30 km from Xichang City in straight line and 80 km by road. It is the third of the five cascade projects on the river section from Kala to the estuary, and connects with the downstream Ertan Project. The main purpose of Guandi Project is power generation, and its total installed capacity is 2400MW. With the maximum height of the dam being 168m. The reservoir has a total storage of 760 million cubic meters. The complex mainly consists of a RCC (roller compacted concrete) gravity dam, an underground powerhouse on the right bank, and spillway facilities. Its total static investment is RMB12.49 billion yuan, while the total dynamic investment is RMB15.2 billion yuan.

Tongzilin
Situated in Yanbian County of Panzhihua municipality, Sichuan Province, 18km to its upstream Ertan Dam and 15km to the confluence of the Yalong and Jinsha rivers. It is the last cascade project on the Yalong River. The total installed capacity of the project is 600MW (4×150MW). The complex consists of the water-retaining dam sections on both sides, a river-bed type powerhouse, and spillway structures. The maximum dam height is 66.63m, and the length of the dam crest is 468.7m."

Lianghekou
Situated in Yajiang County of Ganzi Prefecture, Sichuan Province. The project sits where the Yalong merges respectively with the Qingda and Xianshui rivers, hence the name “lianghekou” (meaning “estuary of two rivers”). Because of its particular location with one dam blocking three rivers, and because of its large reservoir, this project is truly a controlling project in the middle and lower reaches of the Yalong. The reservoir, with a regulation storage of 6.33 billion cubic meters, has the capacity of multi-year regulation, and will therefore provide good compensation for all its downstream cascade power stations on the Yalong and even on the Jinsha and Yangtze. The total installed capacity of the project is 3,000MW. The project has favorable development conditions, and will play an important role in improvement of the power source structure of Sichuan power grid, optimization of power source configuration, and fulfillment of the strategy of West-to-East transmission of electric energy. It is a strategic fulfillment of the strategy of West-to-East transmission of electric energy. It is a strategic project for hydroelectric development of the Yalong River and even the whole West, and for coordinated socioeconomic development.


Projects in Investigation Stage

The Ertan website states "The middle reach river section, from Lianghekou to Kala, is 268km long. According to the approved planning, there are six projects in this section of the river, namely Lianghekou (3,000MW), Yagen (1,400MW), Lenggu (2,718MW), Mengdigou (1,840MW), Yangfanggou (1,500MW), and Kala (1,080MW), with a total capacity of approximately 11.54GW. Of these projects, Lianghekou has a large controlling reservoir.

Yagen Hydroelectric Project Yagen Hydroelectric Project is located in Yajiang County of Ganzi Prefecture, Sichuan Province. Its intended capacity is 1,400MW, which will yield a multi-year power generation of 6,368GWh. The expected static investment is about 9.64 billion yuan.

Lenggu Hydroelectric Project Lenggu Hydroelectric Project is located in Kangding and Yajiang counties of Ganzi Prefecture, Sichuan Province. Its intended capacity is 2,718MW, which will yield a multi-year power generation of 12,570GWh. The expected static investment is about 22.25 billion yuan. Pre-feasibility study of the project is in process.

Mengdigou Hydroelectric Project Mengdigou Hydroelectric Project is located in Jiulong County of Ganzi Prefecture and Muli County of Liangshan Prefecture, Sichuan Province. Its intended capacity is 1,840MW, which will yield a multi-year power generation of 9,070GWh. The expected static investment is about 12.62 billion yuan. Pre-feasibility study of the project is in process.

Yangfanggou Hydroelectric Project Yangfanggou Hydroelectric Project is located in Muli County of Liangshan Prefecture, Sichuan Province. Its intended capacity is 1,500MW, which will yield a multi-year power generation of 7,05GWh. The expected static investment is about 10.77 billion yuan. Pre-feasibility study of the project is in process.

Kala Hydroelectric Project Kala Hydroelectric Project is located in Muli County of Liangshan Prefecture, Sichuan Province. Its intended capacity is 1,080MW, which will yield a multi-year power generation of 5,24GWh. The expected static investment is about 9.0 billion yuan. Pre-feasibility study of the project is in process."


Projects in Planning Stage

The Ertan website states, "The upper reach of the river, from Jiayisi to Lianghekou, is 688km long, and development planning for this section is underway. Based on the investigation data obtained to date, 10 cascade projects with a total installed capacity of 3,250MW are intended to be built, which are Wenbosi (150MW), Renqingling (300MW),Reba (250MW), Ada (250MW), Geni (200MW), Tongha (200MW), Yingda (500MW), Xinlong (500MW), Gongke (400MW), and Gongbagou (500MW)."

Read more on this article...

Police shoot at Tibetan protesters: which dam project is it?

Two weeks ago in Tawu region in Kandze Tibetan Autonomous Prefecture, there was a major protest against relocation of tens of thousands of Tibetans to make room for a dam/reservoir. The most shocking part of news was that officials from China's Public Security Bureau and People's Armed Police shot "indiscriminately" into the crowd and left six Tibetan women "seriously wounded." I blogged about the news sharing some photos and Google Earth images of the region.

Unfortunately, there is very little information about the protest. Both Tibetan language and English language sources use the same narrative about the incident with no specific information about the dam project. This leaves us wondering: how are so many Tibetans affected by a dam project? Which dam project is this? Here are my answers (please correct me if you think I am wrong):

It is the Lianghekou dam project (see copyright-free map below). The Lianghekou is a very large reservoir that will be built at the confluence of three rivers: Nyagchu (or Yalong), Qingda and Xianshui (does anyone know the Tibetan name for this river? Is it Dachu? Zhe Chu?). It is designed as one of the three regulatory reservoirs for 21 dams that are built/planned on the Nyagchu River by the Ertan Hydropower Development Company. According to information on company's website, the reservoir's capacity is 6.33 billion cubic meters, the second largest on the river. It is estimated that the reservoir will extend 90 km from the dam up the Nyagchu, 80 km up the Xianshui River approaching Tawu, and 28 km up the Qingda (see google earth image below).


[This map is copyright-free. Please use it!]


[Rough estimation of Lianghekou Reservoir extension according to altitude and distance. This is guesswork: do not use this image. Stay tuned. I will post more accurate information soon]

Who funds these dam projects?
Ertan Hydropower Development Company is jointly owned by China's State Development & Investment Corporation (48% of shares), the Sichuan Provincial Investment Group Co., Ltd. (48%), and China Huadian Corporation (4%). According to the General Manager Chen Yunhua, Ertan Hydroelectric Project was "the only project world-wide which received, as a single project, the biggest sum of loan (930 million USD equivalent) from the World Bank" (see p.5 of the link).

Is the project good for the local people, the economy or the environment?
Agriculture and pastoralism are the main livelihoods of the people in the region. The Lianghekou Reservoir will inundate most of the farms (agricultural fields) and villages within the area it will cover. The area is also famous for its forests and beautiful lakes. Below is a Google Earth image as an example of farmland and forest area near the Xianshui River that will be inundated by the reservoir. Marshall and Cooke has written about China's disturbing logging practices in the region, which probably continued until such practices were banned in the late 90's due to flooding downstream in the Yangtze River. I also found this essay about the region's wondrous beauty by a little girl from Kangding (Dartsedo) Middle School.



If the project is so bad for the local economy, the environment and the people, one has to ask why local authorities are so adamant about the project going ahead that they would shoot at protesters. What do you think?
Read more on this article...
